Introducing the brightest and most durable motorcycle driving lights that won't break the bank. Engineered based on a decade of customer feedback, our DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and our signature dimming technology at a price point that is more approachable to new riders, younger riders, and our rapidly growing international customer base!
How can they be this good and so affordable at the same time? Thanks to our single-piece TIR optic and robotically sealed construction, we are able to reduce the number of parts, accelerate assembly time, and reduce the overall production costs without sacrificing any changes to our top-bin LEDs, circuitry, or optical design. The result is a indestructible & submersible light pod that can deliver more light per dollar than any of our competitors. All DL Series lamps are available in white, amber, or selective yellow beam options are plug-&-play compatible with all DENALI lighting harnesses and controllers.

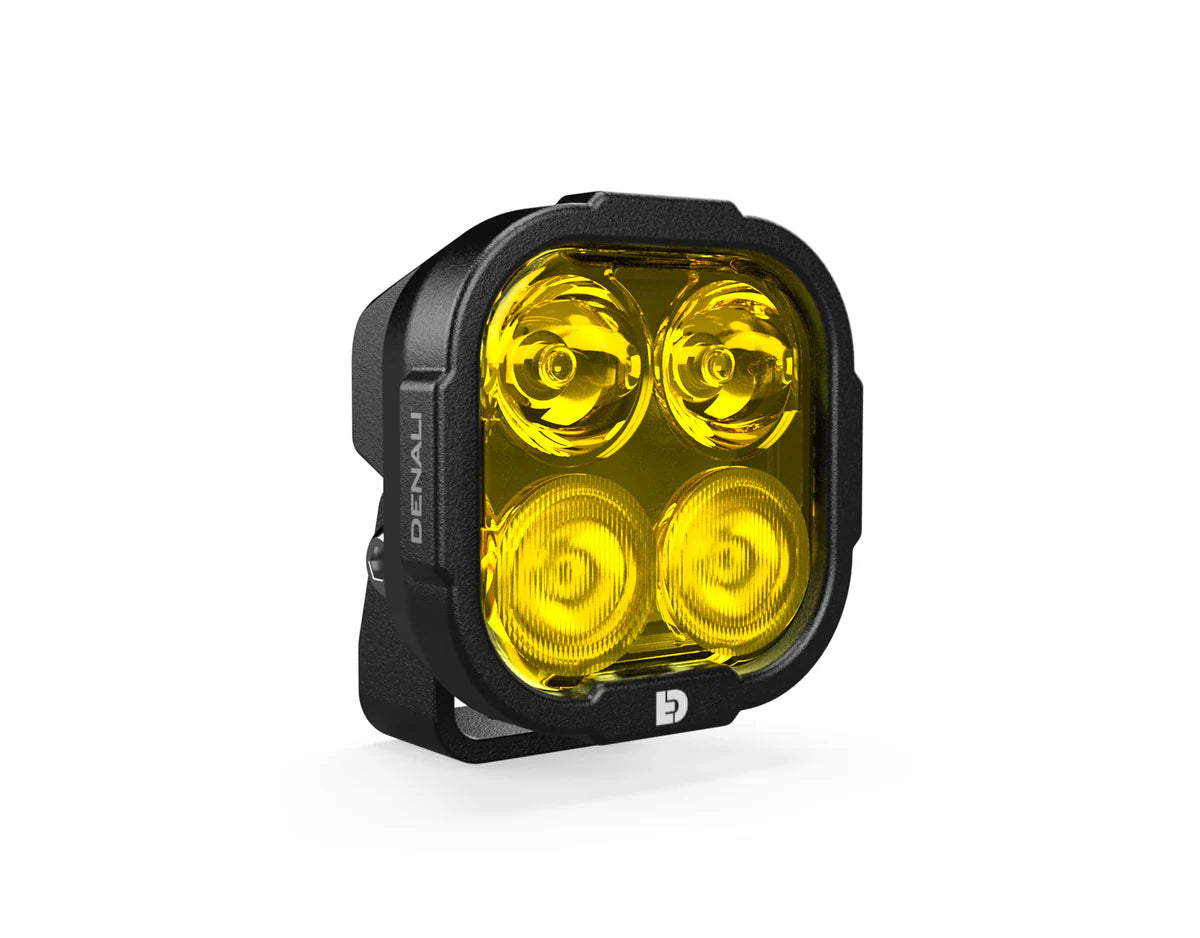

The DL4 features a perfected hybrid driving beam and is the ideal option for your primary auxiliary driving lights on small to medilum sized bikes. It is also small and light enough that it can be mounted in lower fender applications on larger ADV bikes.
- DL4 specification :
-
LED's: Cree XPL HI (8W each)
-
Watts: 32W | 64W
-
Amp Draw: 2.7A | 5.4A
-
Raw Lumens: 3,400 | 6,800
-
Beam Distance: 820' (250m) | 1091' (333m)
-
Beam Width: 157' (48m) | 209' (64m)
-
Connector: DataDim Compatible 3-wire DT
-
Color Temperature: 6000K
-
Operating Voltage: 9-32 VDC
-
Pod Size: 3" x 3" Square x 2" Deep
-
Pod Weight: 1.2 lbs | 2.4 lbs
-
IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray
-
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
-
EMC: R10, CISPR 25, CE, UKCA Compliant
-DL9 specification :
-
LED's: Cree XPL HI (8W each)
-
Watts: 72W | 144W
-
Amp Draw: 6A | 12A
-
Raw Lumens: 7,650 | 15,300
-
Beam Distance: 1380' (421m) | 1835' (560m)
-
Beam Width: 360' (110m) | 478' (146m)
-
Connector: DataDim Compatible 3-wire DT
-
Color Temperature: 6000K
-
Operating Voltage: 9-32 VDC
-
Pod Size: 4.5" x 4.5" Rectangle x 2" Deep
-
Pod Weight: 2.2 lbs | 4.4 lbs
-
IP Rating: IP68 & 69K Waterproof Submersible & High-Pressure Spray
-
Beam Certification: ECE R149 Driving Beam (Aux High Beam)
-
EMC: R10, CISPR 25, CE, UKCA Compliant
